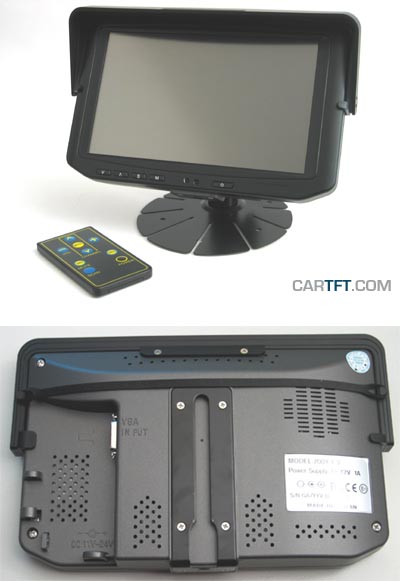

minipc.de700TSV -- TFT 7" -- VGA/PAL/NTSC -- Touchscreen USB -- Speakers -- IR -- SunShield [Silver] (Minimum order quantity : 100 units)
PRODUCT IS CURRENTLY NOT AVAILABLE !![700TSV -- TFT 7" -- VGA/PAL/NTSC -- Touchscreen <b>USB</b> -- Speakers -- IR -- <b>SunShield</b> [Silver] (Minimum order quantity : 100 units)](http://incarterminal.de/minipc/image_db/700TSV_sshield_IR_FULL.jpg)
- Sun Shield !
Resolutions up to 1600x1200. VGA AND PAL/NTSC INPUT !
Integrated audio speakers !
The touch screen utilizes the USB-port as the interface.
Control the PC with the touch of your fingers !
Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Like Xenarc displays (USA)
Resolution : 640x480 to 1600x1024 (auto-detection)
Native dot resolution : 2400 x 480 dots
Input : 2x A/V Eingang (Composite) & 1x VGA (15 pin-DIN)
Brightness: 400 cd/m²
Audi
[more]
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Resolutions up to 1600x1200. VGA AND PAL/NTSC INPUT !
Integrated audio speakers !
The touch screen utilizes the USB-port as the interface.
Control the PC with the touch of your fingers !
Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Like Xenarc displays (USA)
Resolution : 640x480 to 1600x1024 (auto-detection)
Native dot resolution : 2400 x 480 dots
Input : 2x A/V Eingang (Composite) & 1x VGA (15 pin-DIN)
Brightness: 400 cd/m²
Audio Input : Composite
Automatic PAL/NTSC-Detection
Power Input : 12V DC (EU and cigarette lighter)
Power Consumption : < 8 Watts
Operation Temperature : -5°C ~+70°C
Weight (g) : 500
Dimension (mm) : 195x121x35
OSD Controller : Yes
Scope of supply :
- 700TSV display (silver)
- VGA/USB/Video/Audio-Cable (approx. 1.5 meters)
- Mounting unit
- EU(230V) power supply
- Cigarette-lighter power-adapter
- Drivers CD
- Manual
- SunShield (=Sun glare protection, adjustable in 3 steps)
- IR remote control
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
Customer ratings:
 Average rating, based on 3 ratings |
from colpito am 18.02.2008
| See all my comments
This is the best deal you can get on a touch screen VGA lcd practically anywhere. Its a great lcd that can easially be modified and installed almost anywhere. Unfortunitally a design flaw means that the alternate video inputs(NOT VGA) stick out to one side. Because I mounted mine inside my dash this meant desoldering the video connector and extending it to make the inputs usiable.
from Nazx am 05.01.2008
| See all my comments
Nice touch screen by a well-known manufacturer (Xenarc) at carPCs.. But it is an old model with poor features and it's quite expensive... I think it's better checking CTF series...
it is an optimal product, with a brightness perfect.
