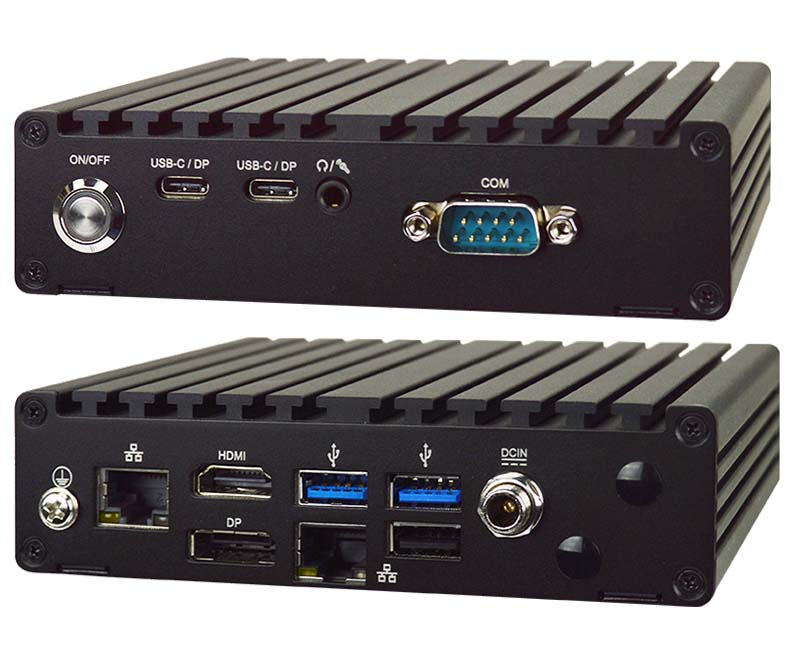

Jetway B420UADN1-A211 BoxPC (Intel N97, 2x Type C DP1.4 , 1x 2.5GE LAN) [FANLESS]

Jetway B420UADN1-A211 BoxPC (Intel N97, 2x Type C DP1.4 , 1x 2.5GE LAN) <b>[FANLESS]</b>

Barebone !
Intel N97 !
2x LAN !
3 Display support !

Powered by Intel® N97 SoC Processor (formerly Alder Lake)
High-Performance Memory: Supports DDR5 SO-DIMM
4K Display: Supports DP Alt Mode
Storage & Expansion: 1 x M.2 E-Key, 1 x M Key
Enhanced Security: TPM 2.0
Dual 2.5GbE Ports for Reliable and High-Speed Networking Connections

459.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.

RAM :

SSD (M.2 NVME):

OS:

Build/Install:

SYSTEM
MB FORM FACTOR	NUC
CPU	Onboard Intel® Processor N97 (Formerly Alder Lake-N, TDP 12W)
CHIPSET	Intel® SoC
MEMORY	1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOS	UEFI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
SECURITY	TPM2.0 (dTPM, Optional)
RTC BATTERY	Lithium Battery
OS SUPPORT	Windows® 11 (64bit) Windows® 10 (64bit) Linux
POWER
POWER REQUIREMENT	DC-in 12-19V 60W Adapter: AC90~240V, DC12V/5.0A
POWER ON MODE	AT / ATX (Default) Mode
DISPLAY
GPU	Intel® UHD Graphics
DP/HDMI	2 x Type C DP1.4 (Max Resolution: 4096 x 2160@60Hz) 1 x DP1.4 (Max Resolution: 4096 x 2160@60Hz) 1 x HDMI 2.0 (Max Resolution: 4096 x 2160@60Hz) Support 3 Displays
AUDIO
CODEC	Realtek Audio Codec
LAN
ETHERNET	2 x RJ45 for Intel® I226-V 2.5GbE
SYSTEM I/O
REAR PANEL I/O	2 x RJ45 1 x HDMI 2.0 1 x DP 1.4 2 x USB 3.2 Gen 2 1 x DC-in (Lockable) 2 x WIFI Antenna Holes (Optional) 1 x GND Hold
FRONT PANEL I/O	1 x Power Button 2 x USB 3.2 Type C support DP ALT mode 1 x Combo Audio (Line out & Mic) 1 x RS-232/422/485
EXPANSION
M.2	1 x M-Key 2260/2280 (PCIe 3.0 x2/SATA III) Support NVMe 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVio
MECHANICAL
MOUNTING	Wall + VESA mount
DIMENSIONS (W x D x H)	129.0 (W) x 109.4 (D) x 34.0 (H) mm
NET WEIGHT	0.56 KG
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE	-20°C ~ 60°C (-4°F ~ 140°F)
CERTIFICATION	CE/FCC Class A LVD
ESG DECLARATION	China RoHS CMRT Report TSCA Declaration WEEE REACH

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
