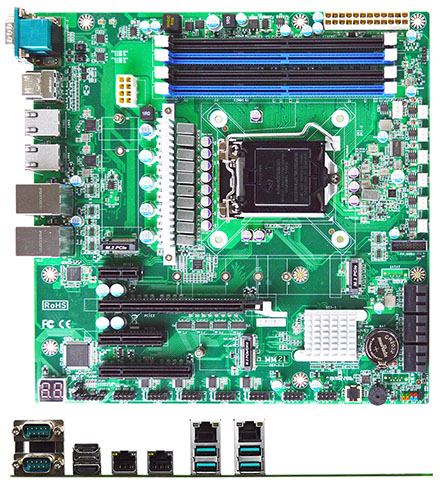

Jetway MM21-Q4700 Micro-ATX (Intel Comet Lake Q470E, LGA1200, 4x LAN)

Jetway MM21-Q4700 Micro-ATX (Intel Comet Lake Q470E, LGA1200, 4x LAN)
  • Intel Comet Lake !
  • 4* LAN !
  • MicroATX !

The JETWAY MM21-Q4700 Series adopts the Intel® LGA 1200 socket processor. MM21-Q4700 Series equipped with four DDR4 long DIMM slot, one M.2 (M-key, 2260/2280), one M.2 (M-key, 2242/2260/2280/22110 support NVMe) and six SATAIII support RAID 0/1/5/10 for multiple storage choices. In additional, MM21-Q4700 Series provide one M.2 E-key (2230, PCIe x1/USB2.0 interface) support CNVi, one PCIe x1, one PCIe x4, one PCIe x8 and one PCIe x16 for multiple expansion.
MM21-Q4700 Series also has four USB 3.2 (Gen.2), two USB 3.2 (Gen.1), four USB 2.0, two RS232/422/485 and four RS232 port, customers can connect different peripherals to meet their needs. MM21-Q4700 Series also support two HDMI dual [more]

Share

439.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart

The JETWAY MM21-Q4700 Series adopts the Intel® LGA 1200 socket processor. MM21-Q4700 Series equipped with four DDR4 long DIMM slot, one M.2 (M-key, 2260/2280), one M.2 (M-key, 2242/2260/2280/22110 support NVMe) and six SATAIII support RAID 0/1/5/10 for multiple storage choices. In additional, MM21-Q4700 Series provide one M.2 E-key (2230, PCIe x1/USB2.0 interface) support CNVi, one PCIe x1, one PCIe x4, one PCIe x8 and one PCIe x16 for multiple expansion.
MM21-Q4700 Series also has four USB 3.2 (Gen.2), two USB 3.2 (Gen.1), four USB 2.0, two RS232/422/485 and four RS232 port, customers can connect different peripherals to meet their needs. MM21-Q4700 Series also support two HDMI dual displays. All of the MM21-Q4700 Series designs provide rich features which can be used for factory automation and industrial PCs.

  • Intel® LGA1200 Socket supports 10th/11th Gen. Core Processor (Max 95W)
  • Intel® Q470E Chipset
  • 4* DDR4 2933/2666/2400MHz up to 128GB
  • 1* Intel® i219-LM GbE, 1* Intel® i210-AT GbE, 2* i225-V 2.5GbE
  • 6* SATAIII (6Gb/s) support RAID 0/1/5/10 & 2* M.2 (M-key), 1* M.2 (E-key) supports CNVi, 1* PCIe x16, 1* PCIe x8, 1* PCIe x4, 1* PCIe x1
  • 2* HDMI
  • 2* RS232/422/485, 4* RS232, 4* USB 3.2 (Gen.2), 2* USB 3.2 (Gen.1), 4* USB 2.0
  • ATX Power Input
  • Support TPM2.0 (MM21-Q4702 only)
  • Micro ATX Form Factor (244 * 244 mm)



Model – MM21-Q4700
– MM21-Q4702 (TPM2.0)
Form Factor – Micro ATX (244 x 244mm)
Processor System – Intel® LGA 1200 Socket support 10th / 11th Gen. Core processor (Max. 95W)
– Intel® Q470E Chipset
– AMI Flash ROM BIOS
*Note: MM21-Q4700 Series do not support CSM, Legacy network PXE boot, Legacy RAID card, PEG card and IGP
Memory – 4* DDR4 2933/2666/2400MHz long DIMM up to 128GB
Storage – 6* SATAIII (6 Gb/s) support RAID 0/1/5/10
– 1* M.2 M-key (2242/2260/2280/22110, PCIe x4 interface) support NVMe
– 1* M.2 M-key (2260/2280, PCIe x2 interface)
Expansion – 1* M.2 E-key (2230, PCIe/USB2.0 interface) support CNVi
– 1* PCIe x16
– 1* PCIe x8 (share with PCIe x16)
– 1* PCIe x4
– 1* PCIe x1
Ethernet – 1* Intel® i219-LM GbE
– 1* Intel® i210-AT GbE
– 2* Intel® i225-V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 2* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
Audio – NA
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 2* USB 3.2 (Gen.1)
– 4* USB 2.0
– 6* SATAIII
– 4* RS232
– 1* Chassis intrusion
– 1* GPIO
– 1* SMBUS / I2C
– 1* AT mode
External I/O – 2* HDMI
– 2* RJ45 GbE
– 2* RJ45 2.5GbE
– 4* USB 3.2 (Gen.2)
– 2* RS232/422/485
Power ATX PWR (8 + 24 pin)
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 85° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
