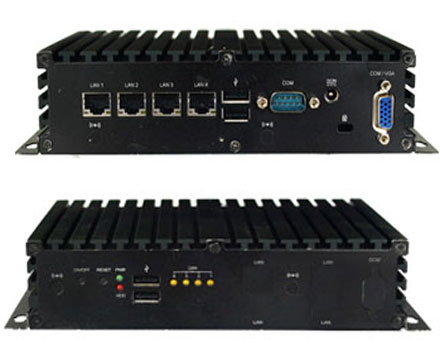

Jetway JBC373F38-525-B (4x LAN) (Intel Pine Trail-D) [REFURBISHED]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JBC373F38-525-B (4x LAN) (Intel Pine Trail-D) <b>[REFURBISHED]</b>

Remnant offer. Refurbished. Traces of usage / scratches on enclosure. 2 years warranty.

  • INTEL® Pine Trail-D Processor D525 + ICH8M Chipset
  • Support 1 * DDR3 800/667MHz Single CH up to 2GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • Support Quad Gigabit LAN
  • Support VGA Output
  • Equipped with 802.11 b/g/n WiFi card & Internal Antenna (JBC373F38W-525-B only)
  • Support 2 * COM ports
  • Support 2.5" SATA HDD drive bay
  • Support 2 * Mini PCI-E socket (one shared with mSATA)
  • Provide CF card socket (Support CF or CF SATA card)
  • Provides Wall mount bracket & VESA mount (Optional)


Share

149.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

4 von 5 Sternen
3 ratings

Add to cart
Model No JBC373F38-525-B / JBC373F38W-525-B
Motherboard Specification
CPU INTEL® Pine Trail-D Processor D525
Chipset INTEL®ICH8M Express chipset
Memory 1 * DDR3 800/667MHz Single CH SO-DIMM up to 2GB
Expansion Slots 2 * Mini PCI-E
LAN 4 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN
Storage 1* Serial ATA2 3Gb/s connector
1 * CF card socket (Support CF or CF SATA card)
1 * mSATA socket (Shared with one Mini PCI-E socket)
BIOS AMI 16MB SMT Flash ROM
Form Factor 3.5” SBC (148mm x 102mm)。
Barebone Specification
Product size 180 (W) *142 (D) * 48 (H) mm
Specs Devices 1 x 2.5”HDD Drive Bay (Only support SATA 2.5”HDD)
Colors Black
Front I/O Port 1 * Power button & 1 * Reset button
1 * Power LED & 1 * HDD LED
2 * USB 2.0 ports
4 * NIC LED’s
4 * LAN ports (optional)
Rear I/O Port 2 * USB 2.0 ports 1 * 12V DC jack
4 * RJ-45 port(Gigabit LAN) 1 * Kensington hole
2 * Antenna holes 1 * VGA & 1 * COM port
Power supply +12V DC-IN Power
Accessory 60W AC-DC Adapter x 1 Power Cord x 1
CD x 1 Manual x 1
COM cable x 1 WI-FI antenna * 1(JBC373F38W–525-B only
Wall Mount Bracket x 2 LCD VESA Mount Bracket x 1 (Optional)
Application Networking Appliance, Set Top Box, Thin Client
Packing Color Box Dimension:250(W) x 118 (D) x 295 (H) mm
Gross Weight:2.78KG Net Weight:1.43KG
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 3 ratings
3 von 5 Sternen from TheMartel am 22.08.2008 | See all my comments

vieillissant...mais toujours utile pour les cartes mère en socket 478. Il ne faut cependant pas trop lui en demander, et la consommation et dissipation reste assez importante comparé a celle des petits dernier de chez Intel, les Atom, ou même par rapport aux Core2Duo.

3 von 5 Sternen from Birne am 07.11.2007 | See all my comments

5 von 5 Sternen from tomianca am 01.11.2007 | | See all my comments

Alles in Ordnung, schnelle Lieferung, genaue Produktbeschreibung und Ware richtig und gut verpackt geliefert!Gerne wieder!
