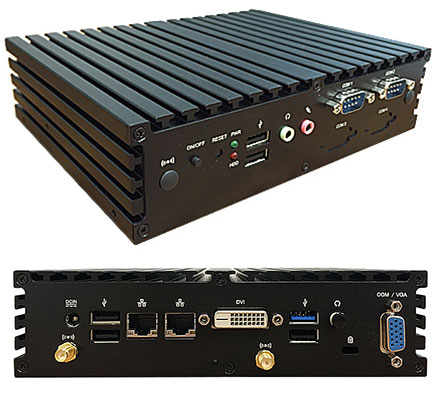

Jetway JBC375F532-2930-B (Intel Bay Trail)

JNF532-2930 (3.5 “ SBC)
INTEL® Bay Trail-M N2930 SoC Processor (1.83GHz)
1 * SO-DDR-3 Low Voltage (Max 8GB)
1 * 2.5” SATA Device (Max Height 9.5 mm)
1 * m-SATA SSD Device (Mini PCI-E)
Application : Gaming,Medical,POS/KIOSK,Industrial Automation,
Transportation,Telecom,Networking,I.O.T,AIO

409.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days

Dimension (WHD)	185 * 48 * 142 mm
Construction	Aluminum housing
Colors	Black
MB model	JNF532-2930 (3.5 “ SBC)
CPU	INTEL® Bay Trail-M N2930 SoC Processor (1.83GHz)
BIOS	AMI UEFI
Memory	1 * SO-DIMM solt (Max 8GB)
Storage Space	1 * 2.5” SATA Device (Max Height 9.5 mm) 1 * m-SATA SSD Device (Mini PCI-E)
Display Interface	1 * DVI-D 1 * VGA ( Internal pin header)
Network	2 * RJ45 (Giga Lan) WiFi (optional / JBC375F532W-2930-B)
Audio	1 * Line out 1 * Mic in
Front I/O Port	2 * USB 2.0 4 * COM (2x factory installation, 2x included in accessories)
Rear I/O Port	3 * USB 2.0 1 * USB 3.0 2 * RJ45 1 * DVI-D 1 * VGA
Expansion Interface	Mini PCI-E # 1 : Half-size (for mini PCIE WIFI module) Mini PCI-E # 2 : Full-size (for M-SATA SSD)
Power Source	DC 9~24V Jack input Adapter : AC_90~240V / DC_12V_5A / 60W
Certification	EMC : CE , FCC Safety : RoHS , ErP
Environment	Operating Temperature : 0 ~ 40℃ Storage Temperature : -10 ~ 60℃ Vibration During Operation : N/A Shock During Operation : N/A
Mounting	Wall mounting Kits
Packing	Net Weight：1.4KG Gross Weight：2.7KG Color Box Dimension：250(W) x 118 (D) x 295 (H) mm

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
