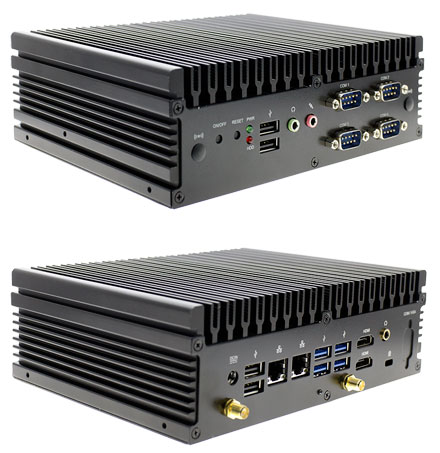

Jetway JBC382F3EW-4300UB (Intel Haswell)

Jetway JBC382F3EW-4300UB (Intel Haswell)

  • INTEL® Haswell / Broadwell SoC Processor
  • 2* DDR3L 1333/1600 up to 16GB
  • Support 1 * Serial ATAIII (6Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 1 * 24 bits Dual Channel LVDS header
  • 1 * mPCIE
  • 1 * mSATA (share with mPCIE)
  • 2 * USB 2.0 + 4 * USB 3.0
  • 2 * HDMI Output
  • Supports 2 * Gigabit LAN
  • Support CPU Smart FAN
  • DC IN Jack 9~24V




Share

919.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

5 von 5 Sternen
2 ratings

Add to cart
Dimension (W*H*D) 185 * 60 * 142 mm
Construction Aluminum housing
Colors Black
MB model JNF3E-4300U (3.5 “ SBC)
CPU & CHIP INTEL® Haswell ULT i5-4300U
BIOS AMI 32MB SMT Flash ROM
Memory 2 * SO-DIMM (DDR3-1333/1600Mhz_Max 16GB)
Storage Space 1 * 2.5” SATA Device (Support SATA 6G / Max Height 9.5 mm) 1 * m-SATA SSD Device (Mini PCI-E)
Display Interface 2 * HDMI 1 * LVD-24 bits ( Internal pin header)
Network 2 * RJ45 (I211AT + I218LM Gigabit LAN) WiFi (optional / JBC382F3EW-4300UB)
Audio 1 * Audio
Front I/O Port 2 * USB 2.0 4 * COM
Rear I/O Port 4 * USB 3.0 2 * USB 2.0
Expansion Interface 1 * Mini PCI-E (Half-size)
Power Source DC-12V Jack input Adapter : AC_90~240V / DC_12V_5A / 60W
Certification EMC : CE , FCC Safety : RoHS , ErP
Environment Operating Temperature : 0 ~ 50℃ Storage Temperature : 0 ~ 60℃ Vibration During Operation : N/A Shock During Operation : N/A
Mounting Wall mounting Kits
­­Packing Net Weight:2.2KG Gross Weight:3.5KG Color Box Dimension:250(W) x 118 (D) x 295 (H) mm
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 2 ratings
5 von 5 Sternen from appsyscore am 03.11.2016 | | See all my comments

Nice look, in line with other products in this industrial series. In this particular case I think is important to say that the support + cables to the 2,5 hard disk is very tight. The SATA/power cable after close the chassis touch the components in the motherboard. In our opinion the cable should be shorter and in this case the disk will be turned 180º. Other situation is the WIFI cables to the sma connectors. these ones should have a different path and should not through the middle off the motherboard. In this case they should be longer.

5 von 5 Sternen from appsyscore am 03.11.2016 | | See all my comments

Nice look, in line with other products in this industrial series. In this particular case I think is important to say that the support + cables to the 2,5 hard disk is very tight. The SATA/power cable after close the chassis touch the components in the motherboard. In our opinion the cable should be shorter and in this case the disk will be turned 180º. Other situation is the WIFI cables to the sma connectors. these ones should have a different path and should not through the middle off the motherboard. In this case they should be longer.
