M3-ATX-HV is an intelligent vehicle ATX power supply. Designed to provide power and to control the ON/OFF switch of a motherboard based on ignition status, M3-ATX-HV is a wide input (6-34V) ATX power supply capable of surviving tough engine cranks (down to 5.7V) as well as transient over-voltage situations.
M3-ATX-HV has 8 user selectable microcontroller driven timing modes, allowing you to choose up to 8 ignition/shutdown timing schemes. By removing all user-selectable jumpers, M3-ATX-HV becomes a traditional PSU with no ignition control and it can be used in non-vehicle applications.
Even if your computer is totally OFF, a PC will still consume few hundered milliwatts, needed to monitor PC ON/OFF status. When the computer is in the suspend/sleep mode, it will consume even more power, because the RAM needs to be powered at all times. The power consumption in the suspend mode is few watts. No matter how big your battery is, it will eventually drain your battery in a matter of days.
While in deep sleep mode, M3-ATX-HV constantly monitors your car battery voltage levels, preventing deep discharge situations by automatically shutting down until battery levels reach safe levels again.
No more dead batteries, no more computer resets during engine cranks, along with multiple timing schemes, small formfactor and very competitive price makes the M3-ATX-HV the premier solution for ATX vehicle power supply solutions.
M3-ATX-HV comes equipped with ATX, HDD and Floppy cable harness, jumpers, faston connectors and 2 pin cables for motherboard ON/OFF switch. Just connect it to your 12V car / boat / RV battery and power up your PC.
Working from 8V Power input (6V for short time) !
The M3-ATX-HV also is capable for P4(M)- and AMD-systems.
Scope of Supply:
- M3-ATX-HV PSU
- Cable for mainboard (Remote-PowerOn)
- 3x cables f. Plus, Ignition Plus, Ground (Minus)
Please
login for creating product ratings.
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
Customer ratings:
Average rating, based on 15 ratings
|
minipc.de

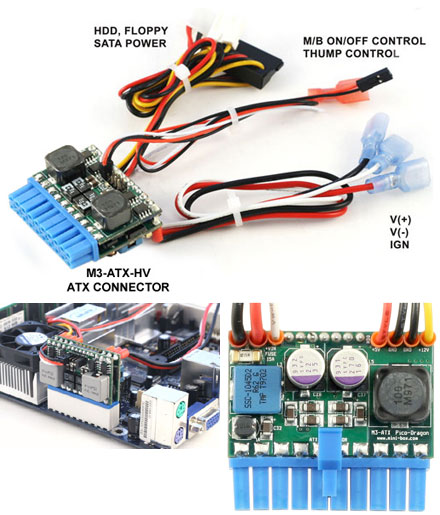

![M3-ATX-HV 6-34V DC/DC (95 Watt) [picoPSU-format !]](http://incarterminal.de/minipc/image_db/M3-ATX-HV.jpg)
