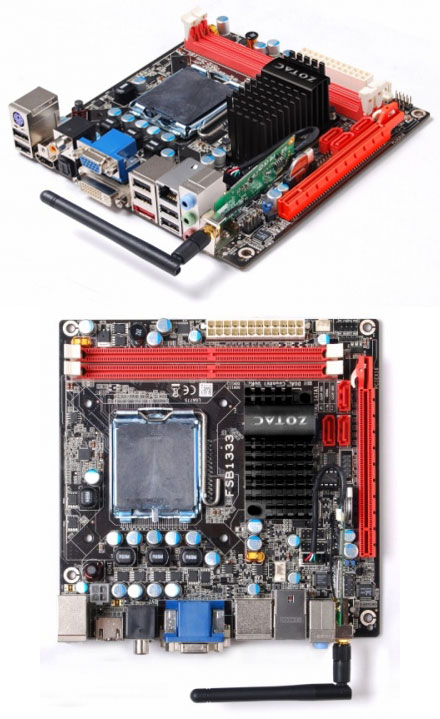

Zotac GeForce 9300-ITX WiFi (for Core2Duo FSB1333 [Socket 775], HDMI, DVI, WLAN) [GF9300-D-E]
PRODUCT IS CURRENTLY NOT AVAILABLE !
Experience the perfect digital home experience with the ZOTAC GeForce 9300-ITX WiFi. Harnessing the power of NVIDIA’s GeForce 9300 graphics processor, the ZOTAC GeForce 9300-ITX WiFi delivers NVIDIA PureVideo HD technology for flawless high-definition Blu-ray playback and superior scaling of standard-definition videos, and NVIDIA CUDA technology for accelerated video processing capabilities.
The ZOTAC GeForce 9300-ITX WiFi pairs the GeForce 9300 graphics processor with Intel socket LGA775 processors – Intel Core 2 Duo, Core 2 Quad, Pentium and Celeron up to 1333 MHz front-side bus – for a high-performance platform that’s ready to take on high-definitio
[more]
| CPU | Intel Core Duo @ 1333 FSB |
| Graphics | GeForce 9300 (Overlocked) |
| Formfactor | ITX (17x17cm) |
| RAM | 2x DDR-III 1333 |
| Audio | Realtek ALC662 5.1 channel HD |
| Base | Intel ITX |
| USB | 12x USB2.0 |
| Firewire | -- |
| IDE/SATA | 2x SATA-II (RAID), 1x eSATA |
| LAN | 1x 10/100/1000 Mbit |
| Parallel | -- |
| Serial | 1x |
| no | TV-Out |
| no | PCI |
| no | Mini-PCI |
| no | IDE |
| yes | DVI |
| yes | 800x480 Resolution |
| no | Passive-Cooling |
| yes | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| yes | CPU changeable |
| no | Compact Flash |
Please login for creating product ratings.
from MikeBRK am 05.04.2011
|
from francesco289 am 29.11.2010
| See all my comments
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
|
Customer ratings:
Average rating, based on 3 ratings |
from MikeBRK am 05.04.2011
|
Ich habe dieses Board mit einem Intel Q8400 bestückt. Als Lüfter einen Big Shuriken und 4GB Ram. Das ganze in ein Q08 Cube-Gehäuse. Der Rechner ist praktisch lautlos. Das Board funktioniert hervorragend und ist absolut empfehlenswert! Cartft lieferte es innerhalb 24 Stunden! Ich bin sehr zufrieden und werde wieder hier kaufen.
from francesco289 am 29.11.2010
| See all my comments
ZOTAC GeForce 9300-ITX WiFi, questo il nome della scheda, supporta processori Intel su Socket LGA775 con frequenza di FSB fino a 1333MHz. La scheda dispone di due slot in formato DIMM per memorie di tipo DDR2 667/800 e offre il supporto per un massimo di 8GB di memoria.
La scheda dispone inoltre di uno slot PCI Express 2.0 x16 che consente, pertanto, l'installazione di schede video tradizionali. La scheda mette inoltre a disposizione la possibilità di sfruttare la modalità "GeForceBoost" che garantisce un incremento prestazionale utilizzando sinergicamente la scheda video dedicata (quando installata) ed il sottosistema video integrato.
La presenza del chip GeForce 9300 offre il supporto alle tecnologie CUDA, PhysX e PureVideo HD. La scheda supporta inoltre connessioni SATA a 3,0Gbps e dispone di un controller WiFi 802.11b/g integrato.
Dal punto di vista delle connessioni I/O, ZOTAC GeForce 9300-ITX WiFi dispone di 6 porte USB 2.0, una porta e-SATA e connettori HDMI, DVI e VGA
Update from :2010-11-29 10:43
RECENSIONI
Una recensione abbastanza approfondita della mobo in questione
http://www.bit-tech.net/hardware/mot...-wifi-review/1
Due rece che comparano la Zotac ad una Asus e Intel similari
http://techreport.com/articles.x/16642
http://www.xbitlabs.com/articles/mai...tel-zotac.html
Altra recensione approfondita molto interessante
http://www.tweaktown.com/reviews/179...ard/index.html
2 Recensioni complete di test, benchmarks, consumo e temperature
http://www.silentpcreview.com/zotac-gf9300itx
http://hardwarezone.com/articles/vie...863&cid=6&pg=1
Compatible enclosures
M350 Mini-ITX enclosure
MHero-L-B Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-L-R Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-S-R Mini-ITX enclosure (with 84W PSU)
Dieses Motherboard ist ausgezeichnet, hat alle Features, die es braucht, CompoNet klein, schnell, komplett mit allen Ausgängen Ich brauche Audi Videos HDMI, DVI, VGA, S-Video etc. etc. etc.;
Perfekt in der Höhe der praktische USB-Ports und integriertem Wi-Fi-Karte;
Und 'möglich, bis zu SATA HDD, 2 TV-Karten, 2 Karten bis zu 8 GB RAM;
Der Rat an alle, nicht nur für den Einsatz im CarPC (wo es mehr überdimensioniert ist) m auch als PC zu Hause nutzen
